Embedded Task Cards

Embedded Task Cards place one Operon task inside a note as a live, interactive card. Use a card beside a project brief, inside a meeting note, or on a dashboard when you want the task's status, progress, and controls close to the text that explains the work.

The card points to an existing Inline Task or File Task by its operonId. It does not create another task or move the source. You can display the same task in several notes and on Canvas, with each card showing the same underlying work.

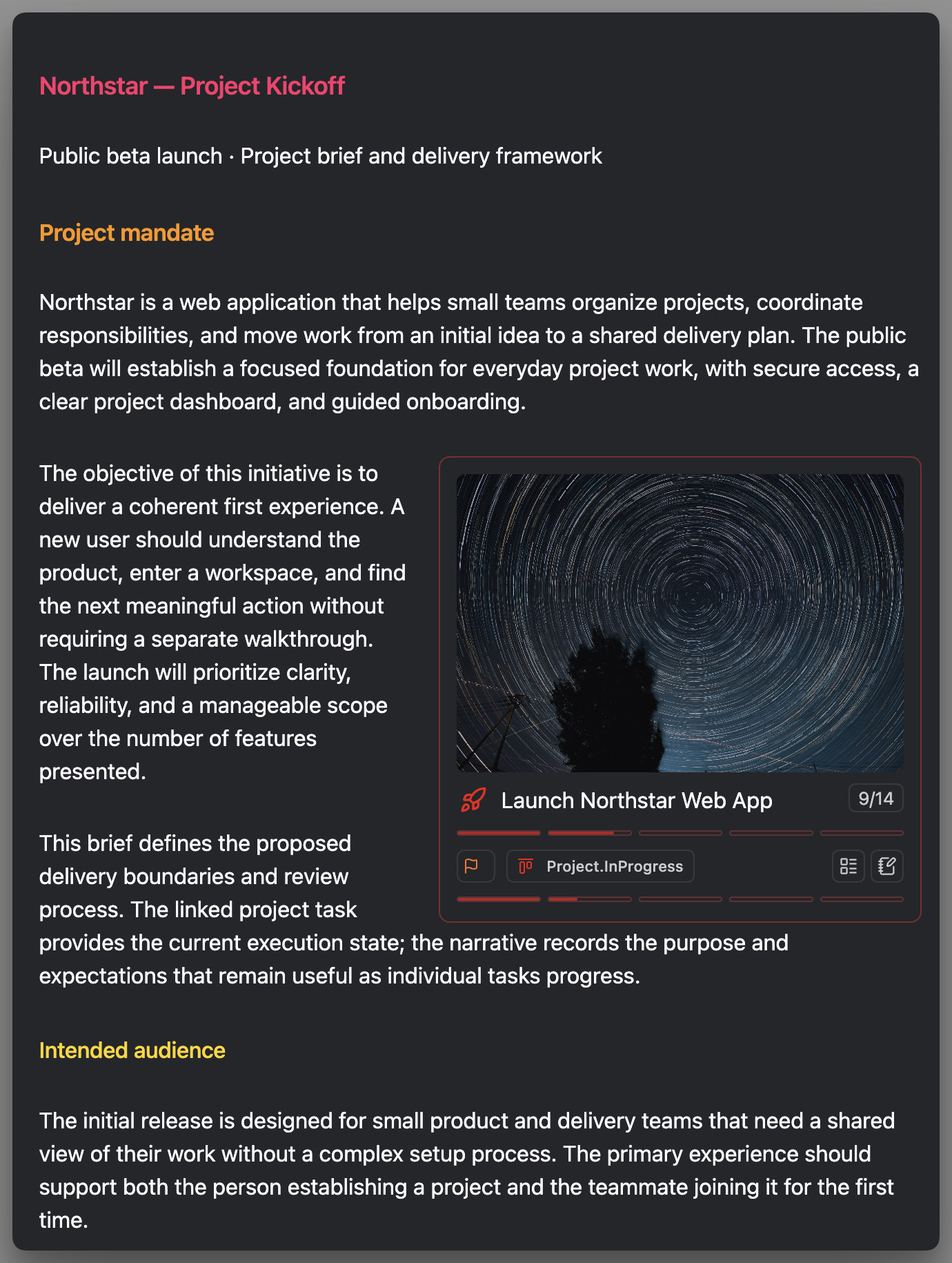

MEDIA-DOCS-142-1: An embedded Northstar launch task card inside a project note, showing its image, task fields, progress, and surrounding planning text.

MEDIA-DOCS-142-1 - Embedded Task Card inside a project note

Copy a card from Task Editor

Open the task in Task Editor.
Use Copy task card embed, beside the existing Copy operonId control.
Paste the copied block into the note where the card belongs.

Operon renders the card in Live Preview and Reading view. In Source mode, the embed remains an ordinary code block that you can inspect and edit.

The copy action supplies the correct task ID and includes the current card layout and visibility preferences. It does not create a task. If the task is missing or its ID is invalid or duplicated, resolve that problem before copying its card.

The code block

An embedded task card uses an operon block with view: card and taskId:

```operon
view: card
taskId: abc1234
```

Here, abc1234 illustrates the ID format. Replace it with the ID of an existing task, or use Copy task card embed to obtain a working block. Do not generate a new ID for an embed: the card needs to point to the task that already exists.

The ID must contain exactly seven lowercase letters or digits. Each option appears once, on its own key: value line. Keep option names and values such as view: card, left, and true in English even when Operon's interface uses another language. Comments starting with # are allowed outside quoted values.

Set the layout for one card

Add optional lines to control this embed without changing other cards:

```operon
view: card
taskId: abc1234
width: 350
align: right
wrap: true
image: true
chips: true
progress: true
```

Option	Accepted values	What it controls
`width`	Whole number from 1 to 2000	Requested card width in pixels; the card is constrained to the available space
`align`	`left`, `center`, `right`	Horizontal position in the note
`wrap`	`true`, `false`	Whether following text may flow beside a left- or right-aligned card
`image`	`true`, `false`	`false` hides the image for this card; `true` allows the configured image source when media is available
`chips`	`true`, `false`	Overrides whether the card's configured chip section is shown
`progress`	`true`, `false`	`false` hides progress displays for this card; `true` allows the enabled progress displays when data is available

With no local width, alignment, or wrapping option, the card follows the corresponding general Task Cards setting. With no local visibility option, it follows the general image, chip, and progress preferences.

Copy task card embed writes explicit options. Those lines remain in the note when you later change general settings. For example, width: 350 keeps that card's requested width at 350 px. Remove the line if you want that card to follow the global width again.

Local visibility does not replace the underlying configuration: image: true cannot supply an image when Image source is None or the task has no suitable media. Likewise, progress: true does not turn on a globally disabled task-progress or checkbox-progress track. chips: true shows the configured chip section, but does not add individual fields that you have hidden.

Place text beside a card

Use align: left or align: right with wrap: true to let following paragraphs flow beside the card. Headings and lists can also continue beside it. Put the embed before the text you want to accompany it.

Wrapping needs enough room for both the card and readable text. In a narrow pane, Operon places the text below the card instead of squeezing it into a thin column. Tables, code blocks, blockquotes, and other complex blocks end the surrounding text flow.

A centered card requires wrap: false:

```operon
view: card
taskId: abc1234
align: center
wrap: false
```

Use this layout for a standalone project summary. Use a left- or right-aligned wrapped card when the task belongs beside explanatory text. These placement options apply to notes; Canvas cards use their Canvas positions and dimensions.

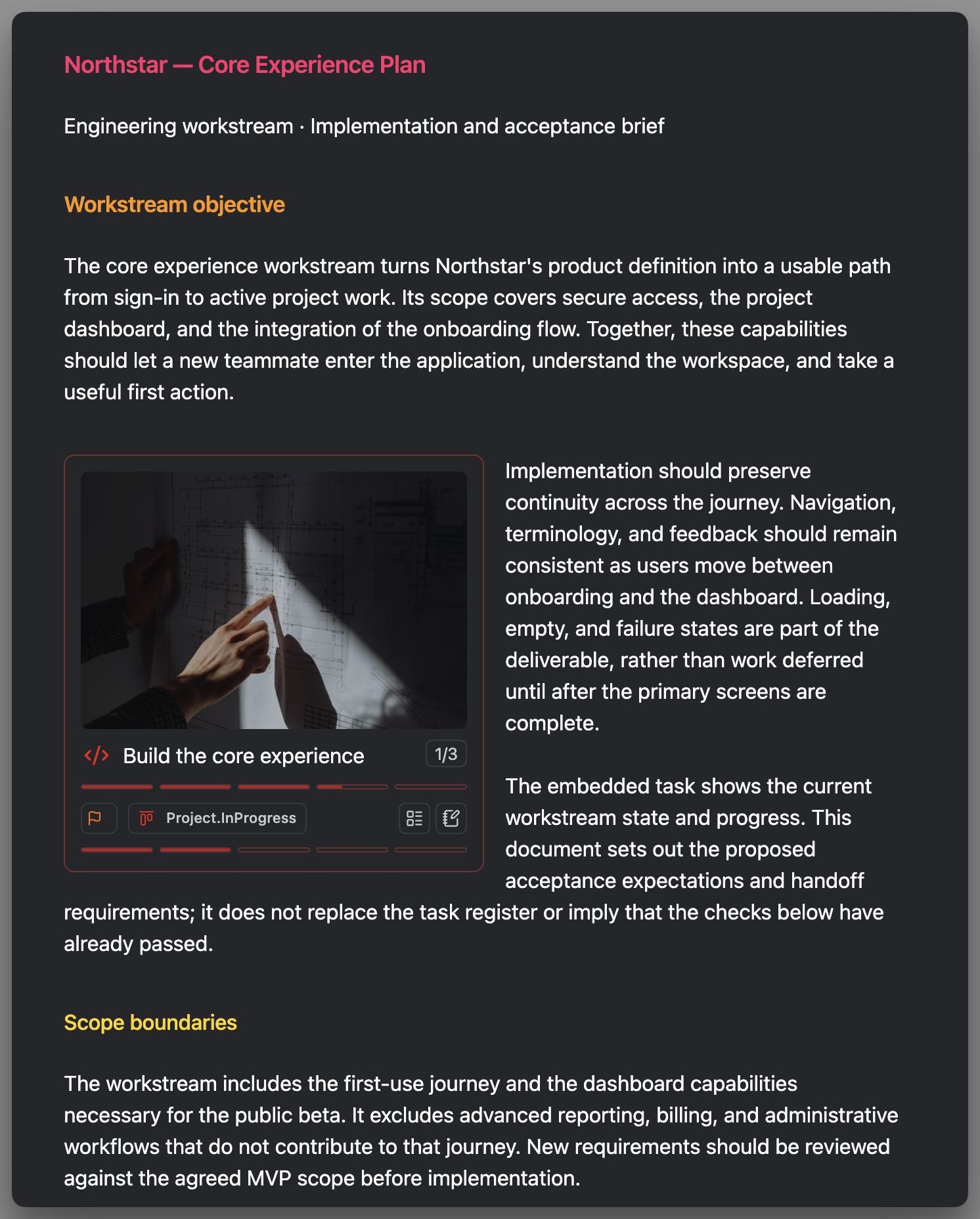

MEDIA-DOCS-142-2: Another example of Embedded Task Cards in a note, showing how task cards fit alongside project content.

MEDIA-DOCS-142-2 - Embedded Task Cards example in a note

Work with the embedded task

Click the task title to open Task Editor. Cmd-click on macOS or Ctrl-click on other platforms opens its source in a new tab. This differs from a native Canvas task card, where clicking the description opens its compact text editor.

The card can show configured field chips, task and checklist progress, and action controls for time tracking, pinning, Notes, creating subtasks, and opening checkboxes. Available controls depend on the task, the enabled settings, and the local visibility options.

Use field chips to edit or inspect their values through the normal Operon controls.
Use the task icon's contextual menu for available task actions, including opening the editor or source.
Use the descendant count to open the task's subtree when it has subtasks.
Use the checkbox action to work with the task's plain checklist.

These actions update the source task, not a private copy inside the note. Changing a date or completing the task from a card is reflected in the other Operon surfaces that display it. Editing the embed's width, alignment, or visibility changes only its presentation.

Removing the embed block removes the card from that note. It does not delete the source task.

Choose a card, filter, or table

Each embed answers a different question:

Embed	Use it for	Reference
Task Card	One specific task, with its own controls and progress	`taskId` in an `operon` block with `view: card`
Filter	A live list of tasks matching saved conditions	`filterId` in an `operon` block
Table	Many tasks displayed as configurable rows and columns	`presetId` in an `operon-table` block

Use separate blocks when a project note needs both its main task card and a filtered list of work. Do not combine filter or filterId with Task Card options in the same block. See Embed a filter in a note and Embed a table in a note.

Settings

Open Settings → Operon → Views → Task Cards for shared card appearance.

Setting	Purpose
Default width	Starting width when the embed omits `width`; 350 px by default
Default alignment and Wrap text	Default placement when the corresponding embed options are omitted
Color source	Choose the task field or color system used for the card accent in notes
Image source	Choose the task media field, or None to hide images
Image ratio	Original proportions, Landscape (16:9), Square (1:1), or Portrait (2:3)
Card item order	Arrange the image, header, task progress, chips, and checkbox progress; the task header stays visible
Task progress, chips, and checkbox progress	Choose the optional sections to display when their data is available

The default-width dropdown offers 300, 325, 350, 375, and 400 px. A local width option can use the wider supported range documented above. Fixed image ratios crop around the center; Original shows the full image. See Task images and galleries for media fields.

Under Settings → Operon → Interface → Task Chips, configure Task Card Chips and Task Card Actions independently of Inline, Filter, or Kanban chips. Under Interface → Context Menu, use the Task Cards surface to configure its task-icon menu. See Task chips and Contextual menu actions.

The Canvas Task Pool settings on the Task Cards page apply to Canvas, not to embedded cards in notes.

FAQ

Why does the card say the task was not found? Check that taskId is the ID of an existing indexed task. It is not a file path, title, or newly generated ID. If the source was deleted, the embed does not recreate it. See Missing tasks.

Why does it report multiple tasks with the same ID? Operon cannot choose a unique source. Resolve the ID conflict rather than relying on the card to select one copy.

Why is the card loading or unable to read the task? Cards wait for the task index. Let Operon finish starting; if the problem persists, check the task source and index. An error does not mean the card created or deleted a task.

Why does my block show an option error? Check view: card, the ID, accepted option values, and duplicate lines. align: center cannot be combined with wrap: true. An invalid option needs correction rather than being silently ignored.

Why is the text below my wrapped card? The pane may be too narrow, a complex block may end the text flow, or Operon may be unable to resolve the editor's source range. Keep wrapping to a left- or right-aligned card followed by ordinary text; check any displayed layout message.

Why did changing the default width not change this card? The copied embed includes its own width line. Edit it or remove it to inherit the global setting.

Does copying the embed duplicate the task? No. Both blocks refer to the same task. Create a new Inline Task or File Task if you need independent work.
